Product
CR FOAM

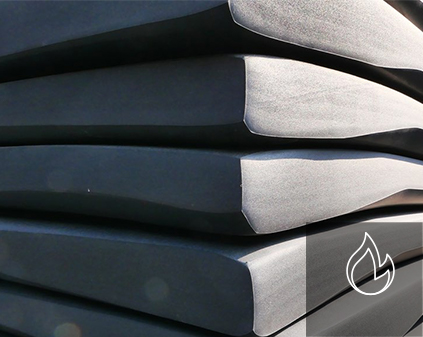

CR (Chloroprene Rubber) Foam, commonly known as Neoprene foam, is a versatile closed-cell elastomeric material known for its excellent balance of mechanical strength, chemical resistance, and weather durability. With strong resistance to oil, ozone, heat, and aging, CR foam is ideal for demanding industrial and outdoor applications.
Its closed-cell structure provides effective sealing, thermal insulation, and cushioning, making it suitable for use in automotive parts, electronics, marine equipment, and protective gear.
-
Excellent oil, ozone, and weather resistance
-
Good flame retardancy and thermal insulation
-
Durable and flexible under wide temperature ranges
-
Closed-cell structure for water and air sealing
-
Strong mechanical properties and shock absorption
-

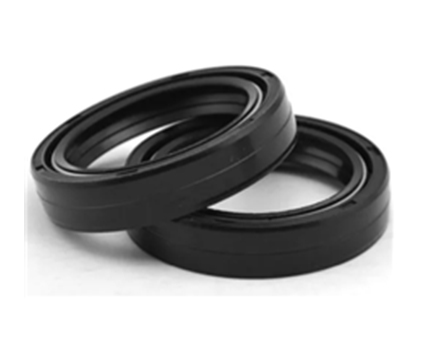

Automotive gaskets and seals
-
Marine and outdoor equipment padding
-
Insulation for HVAC and electronics
-
Sports and protective gear (e.g., wetsuits, knee pads)
-
Industrial machinery vibration dampening
AS-5120 120kg
| Density | 120 ± 20 kg/㎥ |
|---|---|
| Size | 2000x1000x60±5 mm |
| Compression Set(%) (23℃±2℃, 22h) | 15±5 |
| Compression Strength at 25% deflection | 35±10 kPa |
| Compression Strength at 50% deflection | 80±10 kP |
| Shore C Hardness | 15±5 |
| Flammability | UL94 HF-1/FMVSS 302 |
AS-5120 140kg
| Density | 140 ± 20 kg/㎥ |
|---|---|
| Size | 2000x1000x60±5 mm |
| Compression Set(%) (23℃±2℃, 22h) | 15±5 |
| Compression Strength at 25% deflection | 40±10 kPa |
| Compression Strength at 50% deflection | 100±10 kP |
| Shore C Hardness | 16±5 |
| Flammability | UL94 HF-1/FMVSS 302 |
AS-5120 175kg
| Density | 175 ± 20 kg/㎥ |
|---|---|
| Size | 2000x1000x50±5 mm |
| Compression Set(%) (23℃±2℃, 22h) | 15±5 |
| Compression Strength at 25% deflection | 50±10 kPa |
| Compression Strength at 50% deflection | 120±10 kP |
| Shore C Hardness | 17±5 |
| Flammability | UL94 HF-1/FMVSS 302 |
